CS13

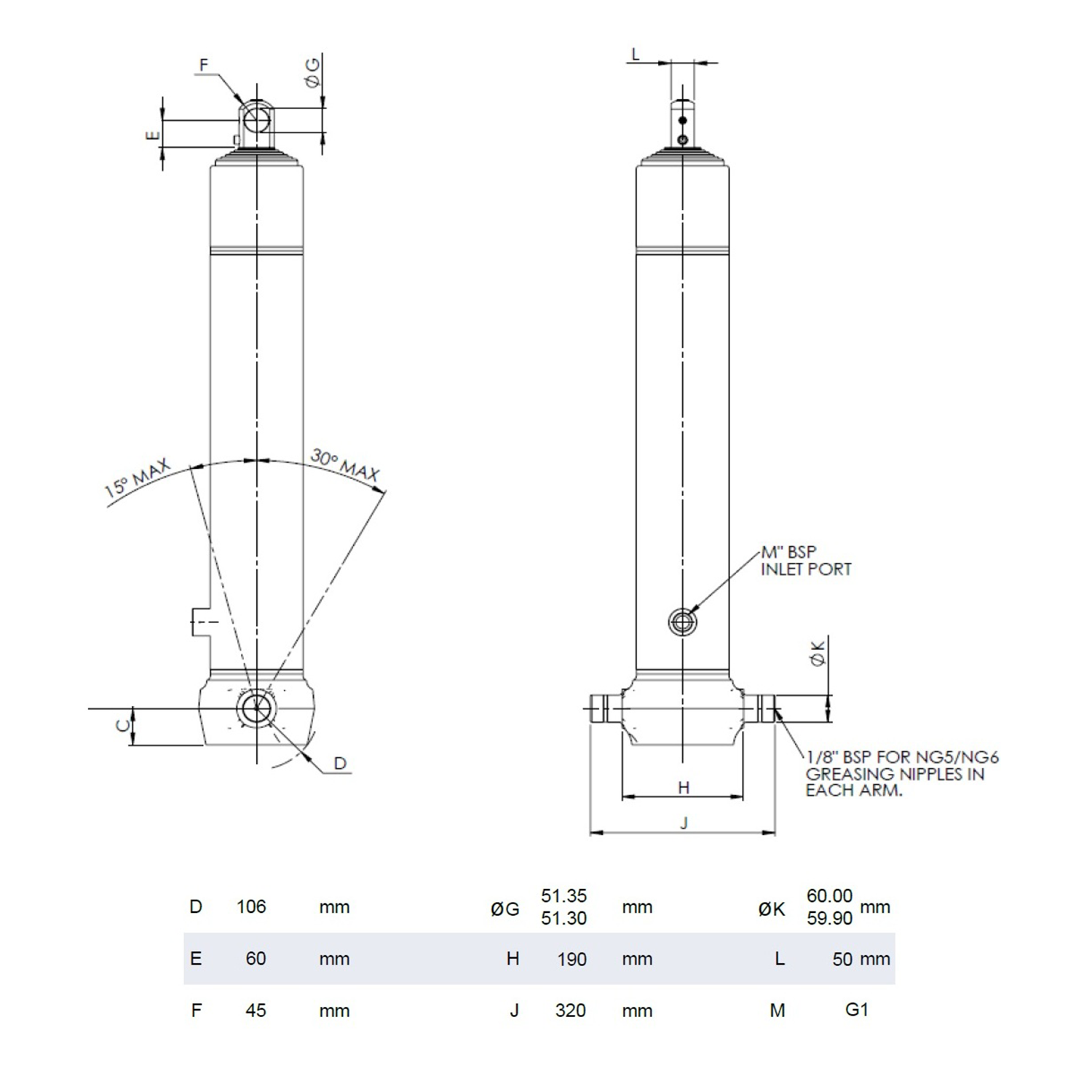

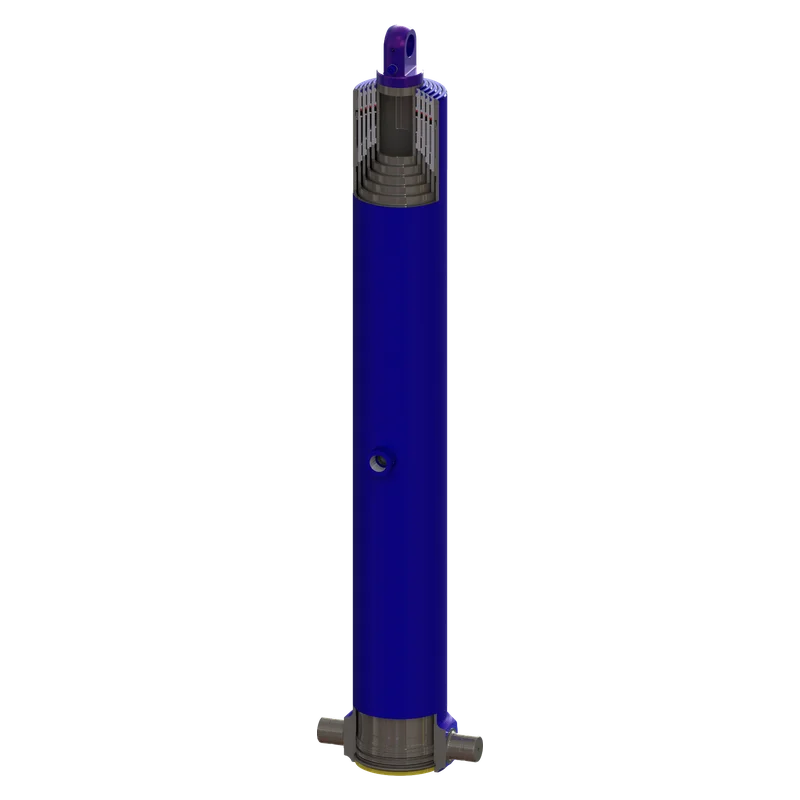

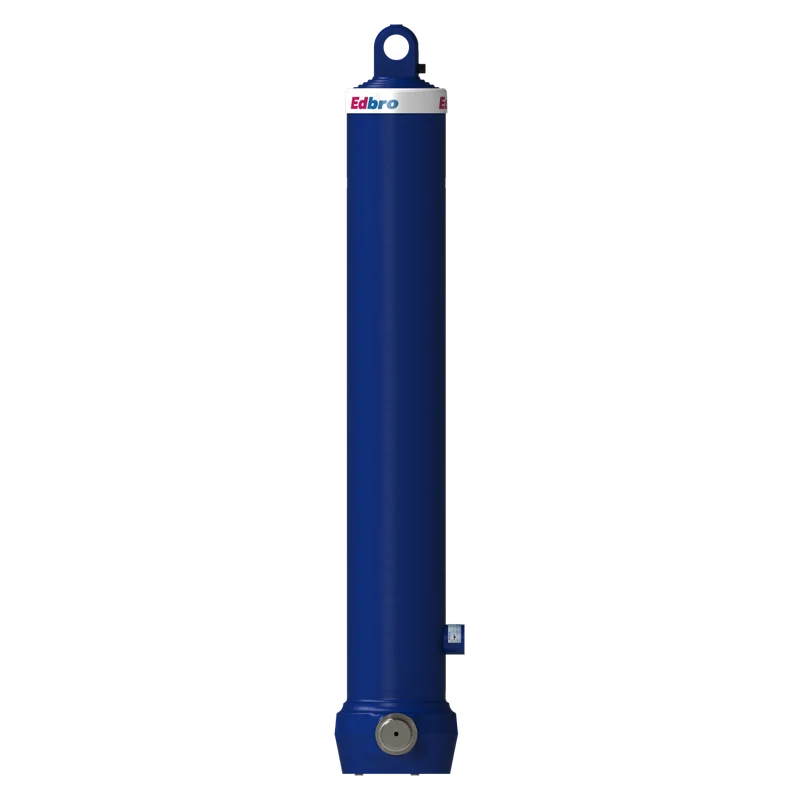

A versatile trunnion-mounted telescopic tipping cylinder engineered for high-strength, dependable performance across demanding on-road tipping applications. Its robust construction, efficient sealing and stable mounting arrangement help deliver reliable operation, reduced component wear and a long service life.
The CS13 combines a compact outer-cover assembly with a broad choice of stages, strokes, mounting centres and hydraulic-port arrangements. The configuration range supports different body lengths, chassis layouts and tipping requirements.
Use the available options below as an initial selection guide. Final product selection should be matched to the vehicle, body geometry, tipping angle, hydraulic system and required lift duty.
| Lift capacity | 18-47 |
| Number of stages | 3,4,5 |
| Stroke options | 7,341 mm |
| Inlet / feed ports | 1.25" BSP/ 1 " SAE/ 90Deg Rotated/Twin/Dual NPT Front |
| Mounting centres | 343,483, 548, 773 |
| System type | On-Road Systems |
| Mounting option | Outer Cover With Trunnion |
The CS13 is suited to commercial-vehicle tipping installations where long stroke, compact closed dimensions and dependable front-end lift are required. The application photograph shows front-end telescopic cylinders supporting raised tipper bodies on a rigid truck and trailer combination.
System design must account for body length, pivot position, tipping angle, load distribution, hydraulic pressure, installation clearances and side-load conditions.
