CB13
At Edbro we offer unrivalled application engineering support and in-depth product knowledge that only comes from decades of industry experience.Our highly skilled engineers can offer the optimum product for your application to maximise operating payload and ensure ultimate safety in operation.Extensive research combined with testing in the most arduous environments ensures the best on the market for reliability and performance in any situation.

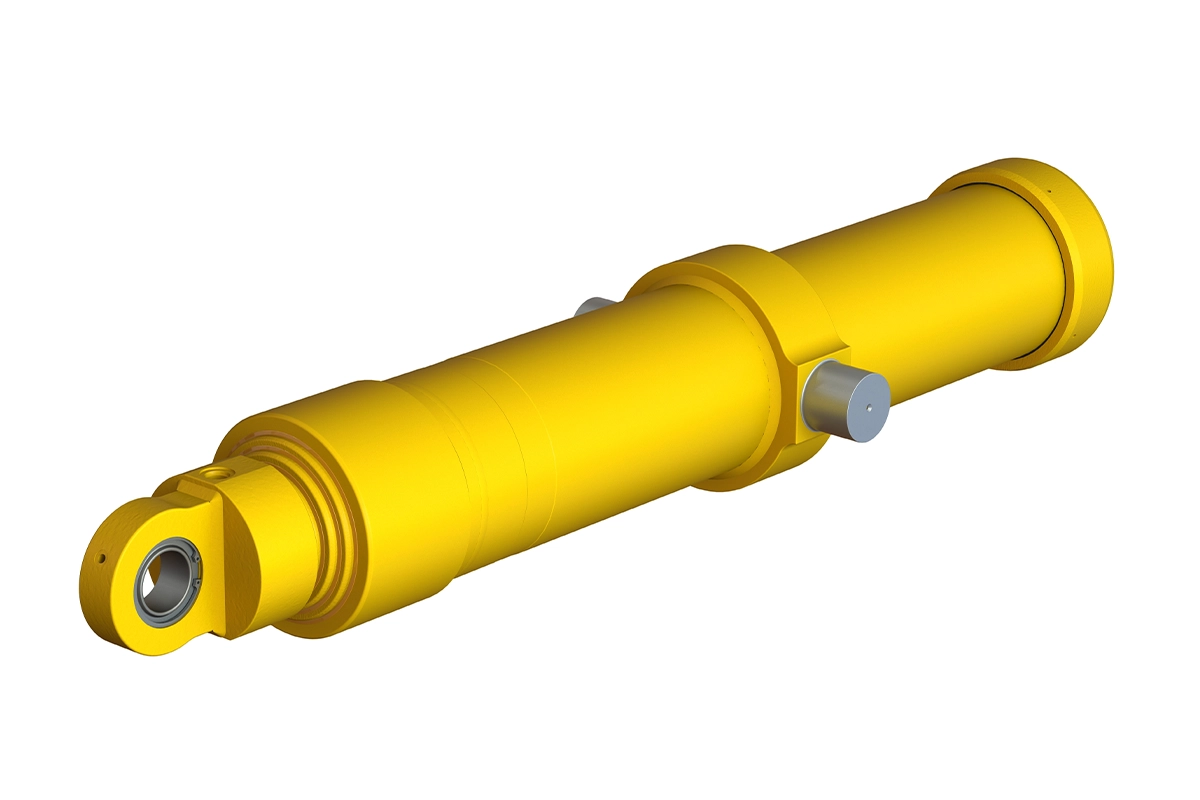

The CB13 is designed for on-road tipping applications where reliable lifting performance, compact installation dimensions and compatibility with different vehicle configurations are essential. Its design supports a range of body lengths, chassis layouts and tipping requirements, helping ensure suitability for varied commercial vehicle applications.
A wide operating range for medium and heavy on-road tipping application
Select the telescopic arrangement that best fits the required stroke and installation envelope.
Stroke availability starts at 2,866 mm and extends to 9,999 mm.
Use the available options below as an initial selection guide. Final product selection should be matched to the vehicle, body geometry, tipping angle, hydraulic system and required lift duty.
| Lift capacity | 24-60T |
| Number of stages | 4/5/6 |
| Stroke options | 9,997 mm |
| System type | On-Road Systems |
Lightweight materials and close tube nesting help maximise lifting capacity while reducing unnecessary weight.
The outer-cover mounting assembly helps protect the cylinder and improve column strength while maintaining a compact installation.
A specialised sealing system helps reduce friction, prevent leakage and limit contamination for smooth operation and reliable service.
A robust mounting arrangement supports secure installation and dependable operation under demanding tipping conditions.
The cylinder configuration can be selected to suit chassis packaging, body-builder requirements and different on-road tipping applications. Mounting arrangements, hydraulic-port positions and stroke requirements should be matched to the vehicle installation
Hydraulic-port positioning can be selected to suit installation requirements.
Appropriate mounting dimensions help accommodate different chassis and body configurations.
The cylinder mounting design helps maintain clearance and reduce the risk of contact under side-load conditions.
The CB13 tipping cylinder is intended for on-road commercial vehicle applications requiring reliable lifting performance, durable construction and efficient integration with the tipping body. Its application and installation should be assessed against body dimensions, pivot position, required tipping angle, load distribution, hydraulic pressure and available mounting clearances.
