CS17

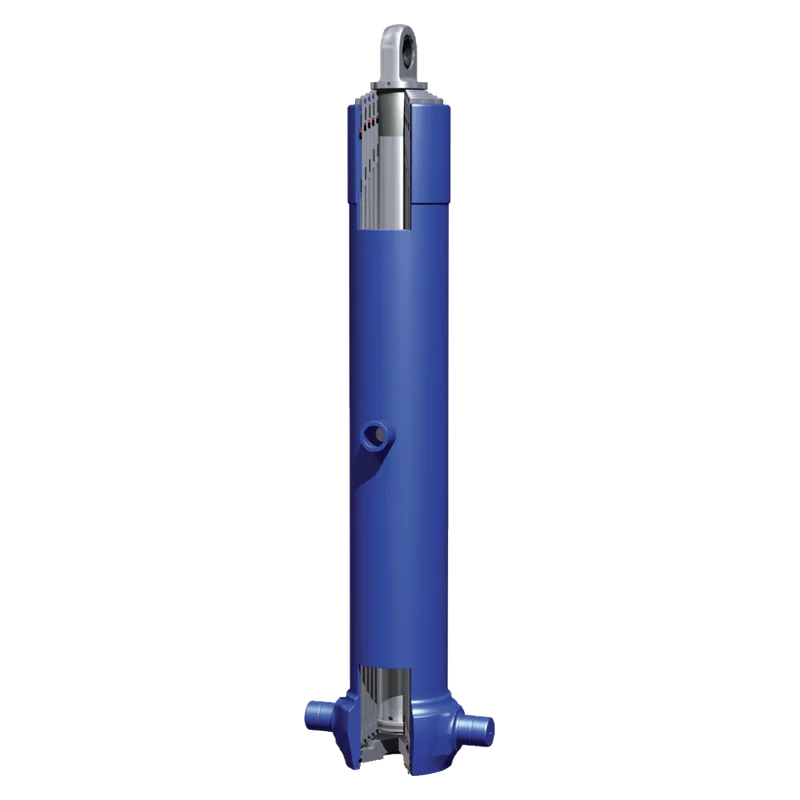

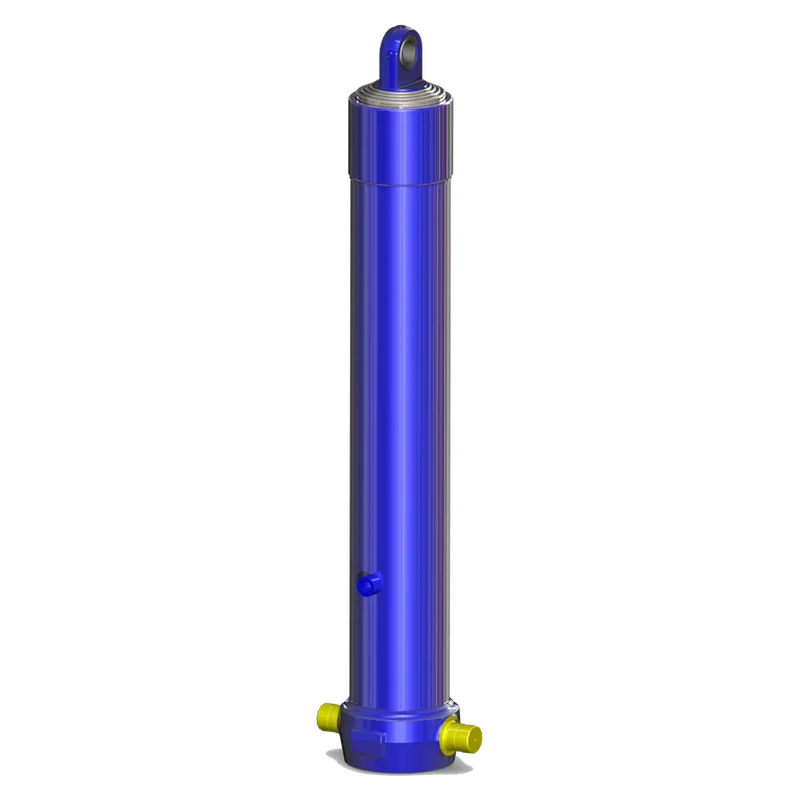

A versatile trunnion-mounted telescopic tipping cylinder engineered for high-strength, dependable performance across demanding on-road tipping applications. Its robust construction, efficient sealing and stable mounting arrangement help deliver reliable operation, reduced component wear and a long service life.
The CS17 combines a compact outer-cover assembly with a broad choice of stages, strokes, mounting centres and hydraulic-port arrangements. The configuration range supports different body lengths, chassis layouts and tipping requirements.
A wide operating range for medium and heavy on-road tipping applications.
Select the telescopic arrangement that best fits the required stroke and installation envelope.
Stroke availability starts at 2,866 mm and extends to 9,999 mm.
Use the available options below as an initial selection guide. Final product selection should be matched to the vehicle, body geometry, tipping angle, hydraulic system and required lift duty.
| Lift capacity | 22-57 |
| Number of stages | 3,4,5 |
| Stroke options | 8,206 mm |
| Inlet / feed ports | 1.25" BSP/ 1 " SAE/ 90Deg Rotated/Twin/Dual NPT Front |
| Mounting centres | 298, 343, 483, 548, 773, 1028, 1053, 1078, 1103, 1128, 1153, 1178, 1203, 1228, |
| System type | On-Road Systems |
| Mounting option | Spherical Eye-Mounting |
Advanced manufacturing processes and high-grade lightweight materials allow close tube nesting, supporting maximum lift diameter at the upper stages without unnecessary mass.
The cover-mounting assembly protects the cylinder and increases column strength while retaining a compact installation package.
A specialised sealing system reduces friction for smooth operation, while helping resist leakage and contamination for durable, trouble-free service.
60 mm diameter trunnion arms include provision for greasing. The sealed retaining arrangement helps reduce corrosion and service noise.
Port, mounting and stroke choices allow the CS17 specification to be aligned to chassis packaging and body-builder requirements.
Choose 1.25-inch BSP, 1-inch SAE or 90-degree rotated-port options, with seven available feed-port distances from the base.
Nine mounting-centre options, from 298 mm to 1,278 mm, support a wide range of installation geometries.
The outer-cover concept and three-bolt top-plate arrangement help reduce the risk of cover-to-tube contact in heavy side-load applications.

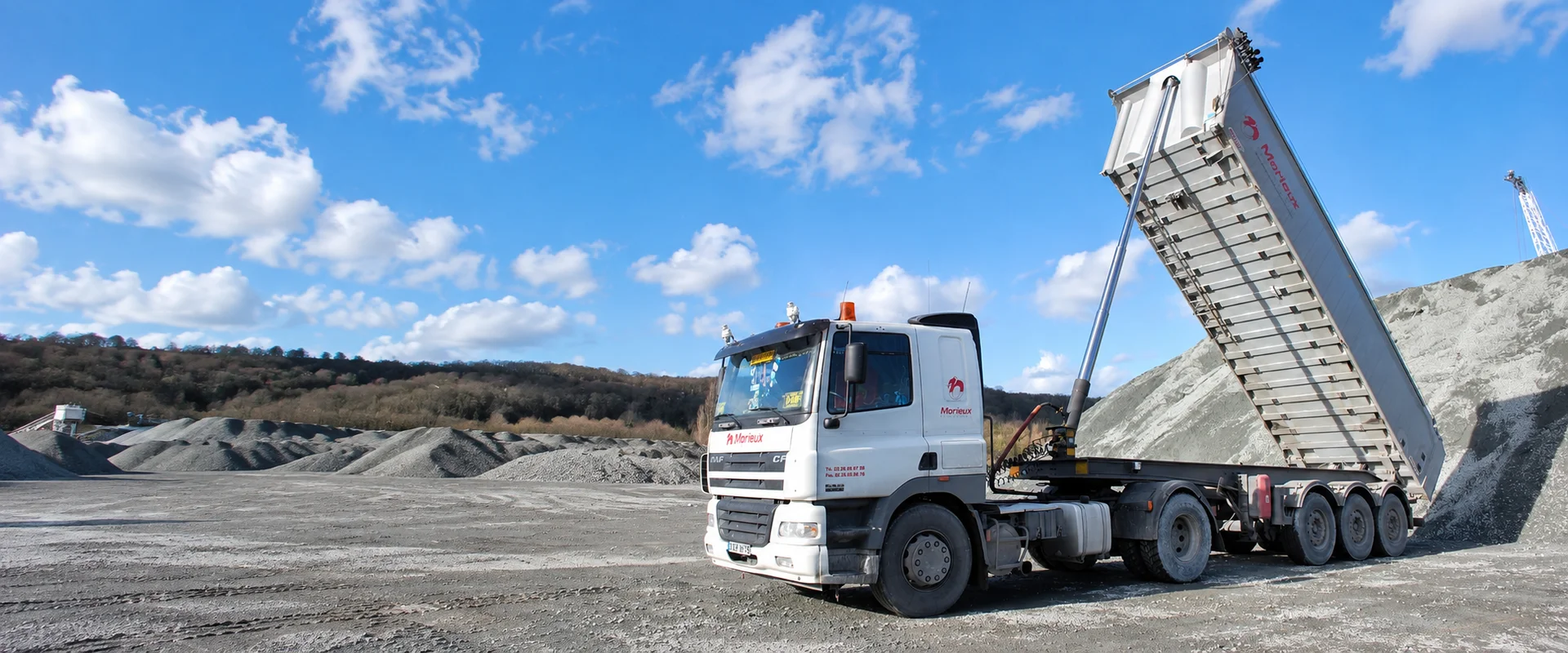

The CS Series spherical eye end mounting front-end cylinders are designed for on-road tipping applications that require long stroke, compact closed dimensions and reliable lifting performance. They are suitable for commercial vehicle tipping systems, including rigid trucks and truck-trailer combinations, where front-end telescopic cylinders provide controlled lifting of the tipper body. System design should consider body length, pivot position, required tipping angle, load distribution, hydraulic operating pressure, mounting clearances and potential side loads to ensure safe, reliable and efficient operation.
